Lesson 6Hands-on · ~40 min

Flow Orchestration

Flows transform data; that transformation needs a place to keep intermediate values and rules for choosing which step to run next. This lesson is about variables, expressions, and the orchestration logic that makes flows feel alive at runtime.

Variables

Information needs to be stored for many reasons:

  • Calculating new values from existing ones.
  • Changing the execution path based on runtime values.
  • Passing values between flow components.
  • Carrying environment-specific configuration.
  • Tracking execution status, user messages, and errors.

Magic xpi splits variables into two broad categories:

  • Environment variables — maintained externally, in the Settings dialog or in the project's ifs.ini.
  • Project variables — defined inside the project, in several scopes.

Environment variables

Environment variables describe the project's physical operating environment — file locations, database names, anything that varies between Development, Test, and Production. The runtime engine substitutes their value wherever it sees the name surrounded by percent signs (%name%).

Variable NameDefined ValueInterpreted
sl\\
driveC:C:
datapath%drive%%sl%data%sl%C:\data\
Inbound%datapath%in%sl%C:\data\in\

Environment variables come in two flavors:

  • User — you create, rename, or delete them. Renames don't ripple through your code — do this carefully.
  • Internal — predefined by Magic xpi; you can change values but not delete the name. currentprojectdir is the most commonly used internal variable.

Creating an environment variable

  1. Open Project » Settings.
  2. Navigate to Environment » General Environment » User Environment Variables.
  3. Click Add, enter the Name (source_directory) and the Value.
  4. Click OK.
Where they're stored. General environment variables live in the MAGIC_LOGICAL_NAMES section of Magic.ini; project environment variables live in the project's ifs.ini.
Case sensitive. Magic xpi treats environment variable names as case-sensitive.

Project-specific variables

Magic xpi has four kinds of project-specific variables, each with its own scope:

Global (G.)Available to every flow in the project. Updates are visible everywhere immediately.
BP (B.)Shared inside a single Business Process — like a global, but scoped to one BP.
Flow (F.)Defined and used inside one flow only.
Context (C.)Defined globally but valued per context. Different parallel branches can hold different values.

Each variable has these fields:

NameUse meaningful names without spaces or special characters — the prefix is added automatically.
DescriptionFree text describing the variable's purpose.
TypeAlpha, Numeric, Logical, Date, Time, or BLOB.
LengthMax characters for Alpha; max digits / decimal places for Numeric.
Default ValueInitial value or expression. Only global variables can be referenced in default-value expressions.
Predefined globals. Magic xpi ships two globals you may reference: G.sys.ServerInstance (the runtime engine number) and G.sys.ComponentLogging (a runtime switch for component logging).

Flow logic

Flow logic is the set of conditions and rules that determine the path your flow takes at runtime. The available tools are:

  • Conditions on individual steps.
  • Logic flows attached to a step.
  • The GoTo command.
  • The Call Flow component.
  • Component properties (Linear, Parallel, Wait for Completion).
  • Flow invocation methods — triggers, publish & subscribe, the Scheduler.

Steps and branches

In the previous lesson, the Scan Directory step ran first and the Send Email step ran second — one after the other. To run them in parallel, introduce a branch by dropping the second step onto the first:

  1. The Directory Scanner becomes the head of the branch.
  2. You now have two child steps that may run together.

Linear vs. parallel execution

LinearSteps execute sequentially — one after the other.
ParallelSteps execute simultaneously. Useful for performance, independent steps, and long-running steps that shouldn't block the rest of the flow.
Stand aloneLike parallel, but excluded from Wait for Completion. Fire-and-forget.

Linear connections are drawn as solid lines; parallel connections are drawn as dotted lines.

Wait for completion

When linear and parallel steps live at the same level, you sometimes need to wait for the parallel siblings to finish before moving on. Set Wait for Completion on the linear step that should pause the flow; an icon appears above it on the canvas. Stand-Alone parallel siblings are excluded from the wait.

Choosing the next step

When a step finishes, the Server picks the next step:

  1. Run all parallel/stand-alone children whose conditions evaluate to True (or have no condition).
  2. Among linear children, scan left-to-right. Run the first one whose condition evaluates to True.
  3. If no linear child has a true condition, run the first linear child without a condition.
  4. If nothing matches, the flow terminates.

Expression editor

The Expression Editor is where you define expressions — formulas built from variables, constants, functions, and operators. To attach a condition to a step, right-click and choose Condition; the editor's title bar shows the expected return type (e.g. Logical).

The toolbar offers several assistors:

FunctionsBrowseable list with descriptions; double-click to insert.
VariablesPick a variable to insert at the cursor, with its type shown.
Environment VariablesInserts the name wrapped in EnvVal(...) automatically.
ODS / PSS Topics / Source NodesDomain-specific picker, depending on context (covered in later lessons).
Insert FilenamePicks a file from disk and inserts its path as a string literal.
Function autocomplete. Type the first few letters of a function name and press Ctrl+Space; Magic xpi shows the closest matching function, which you can paste at the cursor.

Always click Verify before closing the editor to make sure your expression is valid.

Debugging with the Context Tree

When you debug a flow, the Components pane in the Studio is replaced by the Context Tree. It lets you walk through the active flow context step by step.

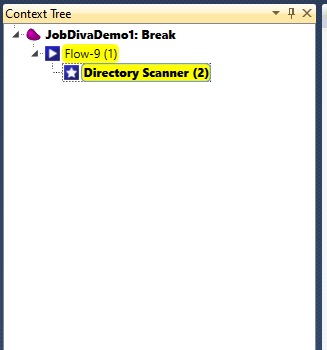

The Context Tree pane with JobDivaDemo1 paused on Flow-9 at the Directory Scanner step
The Context Tree during a paused debug session.

Exercise

Practice these.
  1. Replace the predefined context variables in the Directory Scanner with two flow-scoped variables:
    • F.RequestXML — BLOB.
    • F.RequestFileName — Alpha 255.
  2. Define a global variable for the salesperson's email address:
    • Name EmailTo
    • Type Alpha, length 100
    • Default value — the salesperson's address (e.g. postmaster@magicxpi.com)
    Use G.EmailTo in the Email step's To field.
  3. Add a condition on the Email component that terminates the flow if no file was moved — i.e. if F.RequestFileName is blank.
  4. Add four flow variables you'll need in Lesson 7:
    • F.CustomerEmail — Alpha, length 100.
    • F.CustomerName — Alpha, length 30.
    • F.ContactName — Alpha, length 30.
    • F.CustomerId — Numeric, size 9.

Summary

You should now be able to:

  • Choose the right variable scope for the data at hand.
  • Explain how Magic xpi decides which step runs next.
  • Write expressions for step conditions.
  • Set a step's execution mode (linear, parallel, stand-alone) and wait-for-completion behavior.
